Workshop files

Technical informationPFERD Tungsten Point File 4" Second CutItem number11509150Cut2Cut files typeSecondEDP no.17008Height3/64 InchLength4 InchPFERD TOOLS type1118 AWidth5/16 InchPackaging unit10 EACHTungsten point files are used to prepare or clean electrical contacts for use, and are ideal for narrow grooves and cut-outs. Rectangular file with flat handle and cut 2 on two sides. Very thin file, specifically designed for work on contacts, narrow grooves, and cut holes. Second cut for universal filing work. These contact files are delivered in industrial packaging. The punch file handle eliminates the need for an additional handle.Special featuresThe punch file handle eliminates the need for an additional handle.Very small cross section for use in keyways.Practical design.Workpiece materialsSteels up to 370 HV (< 38 HRC)Cast steelOther non-ferrous metalsApplicationsDeburringSurface workCompatible power toolsManual application

Technical informationPFERD DIY File Set - 3 Pieces 8"Item number11202300EDP no.16070Length8 InchPFERD TOOLS type300Packaging unit1 EACHQuality files designed for DIY users. Precise, with a high stock removal rate and good durability. Also suitable for sharpening. Each file comes with an ergonomic file handle. Packaged in a cardboard box.Special featuresDesigned for a wide range of applications.Consistently high stock removal rate from the tip to the tang.Durable.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Key File Set - 6 Pieces 4" Second Cut Wooden HandleItem number11706100Cut2Cut files typeSecondEDP no.17012Length4 InchPFERD TOOLS type265 BPackaging unit1 EACHSecond cut for universal filing work. This set contains key files designed for a variety of different applications. Includes mounted wooden handles in a plastic pouch to protect against dirt and damage. Key files are only available in a set and not individually.Special featuresVersatile.Designed for filing delicate components.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSharpeningSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Flat File 6" Smooth CutItem number11103153Cut3Cut files typeSmoothEDP no.11006Height5/32 InchIncl. handlewithoutLength6 InchPFERD TOOLS type1122Width5/8 InchPackaging unit10 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Rectangular file, tapered and cut on four sides. Tanged version. Designed for work on rectangular geometries. Smooth cut for precision processing and finishing. Files come in industrial packaging without handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for fine processing and finishing.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Pipeline File 14" Coarse Cut with HandleItem number18100955Cut1Cut files typeBastardEDP no.11155HHeight11/32 InchIncl. handle12617151Length14 InchPFERD TOOLS type1152Width1.375 InchPackaging unit5 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Files for working on pipeline weld seams and for removing scale on pipelines. Files come in point-of-sale packaging with ergonomic file handles.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Half Round File 4" Coarse CutItem number11105101Cut1Cut files typeBastardEDP no.11150Height3/32 InchIncl. handlewithoutLength4 InchPFERD TOOLS type1152 SPWidth13/32 InchPackaging unit10 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Half-round pointed file, cut on two sides. Tanged version. Designed for filing out concave surfaces and crevices, and for rounding out holes. Bastard cut for coarse stock removal and roughing. Files come in industrial packaging without handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for roughing or coarse stock removal.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Hand File 10" Second CutItem number11101252Cut2Cut files typeSecondEDP no.11043Height1/4 InchIncl. handlewithoutLength10 InchPFERD TOOLS type1112Width31/32 InchPackaging unit10 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Rectangular file, cut on three sides, one side uncut. Tanged version. Designed for working on rectangular surfaces. Second cut for universal filing work. Files come in industrial packaging without handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for universal workshop applications.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Knife File 8" Smooth Cut Smooth CutItem number11109203Cut3Cut files typeSmoothEDP no.11057Height3/16 InchIncl. handlewithoutLength8 InchPFERD TOOLS type1172Width27/32 InchPackaging unit10 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Triangular file with knife profile, cut on two sides and the narrow edge. Tanged version. For work on very acute-angled and narrow-shaped surfaces. Smooth cut for precision processing and finishing. Files come in industrial packaging without handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for fine processing and finishing.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Round File 4" Coarse CutItem number11107101Cut1Cut files typeBastardEDP no.11061Incl. handlewithoutLength4 InchPFERD TOOLS type1162Dia. external5/32 InchPackaging unit10 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Round file cut all the way around the circumference. Tanged version. Designed for work on circular holes and rounded grooves. Bastard cut for coarse stock removal and roughing. Files come in industrial packaging without handles.Special featuresRapid metal removal and smooth surface finish due to spiral cut.Consistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for roughing or coarse stock removal.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Square File 8" Second Cut with Handle RetailItem number11212207Cut2Cut files typeSecondEDP no.11088PIncl. handle12617140Length8 InchPFERD TOOLS type1142Width5/16 InchPackaging unit1 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Square file, tapered and cut on four sides. Tanged version. Designed for filing angular surfaces. Second cut for universal filing work. Files come in point-of-sale packaging with ergonomic file handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for universal workshop applications.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD Three Square File 10" Coarse Cut with Handle RetailItem number11211256Cut1Cut files typeBastardEDP no.11103PIncl. handle12617150Length10 InchPFERD TOOLS type1132Width11/16 InchPackaging unit1 EACHPFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Triangular file, tapered and cut on all three sides. Tanged version. Designed for filing angular surfaces. Bastard cut for coarse stock removal and roughing. Files come in point-of-sale packaging with ergonomic file handles.Special featuresConsistently high stock removal rate from the tip to the tang.Durable.Application-oriented design.Recommendations for useUse this file for roughing or coarse stock removal.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)ZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD File Set - Hand, Three Square, Square, Tapered Half Round, Round 8" Coarse CutItem number11800531EDP no.16178Length8 InchPFERD TOOLS type531VersionWRPackaging unit1 EACHQuality files for industry and trade. These files are packaged in a protective and climate-resistant PVC pouch for storage in a toolbox or on a workbench. Each file comes with an ergonomic file handle. This plastic pouch comes in attractive packaging with a transparent window.Special featuresDesigned for a wide range of applications.Includes matching plastic pouch to save storage space.Consistently high stock removal rate from the tip to the tang.Durable.Recommendations for useUse this file for roughing or coarse stock removal.Workpiece materialsAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Steel, cast steelSteels up to 370 HV (< 38 HRC)ZincApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD File Set - Hand, Three Square, Square, Tapered Half Round, Round 8" Second CutItem number11800532EDP no.16179Length8 InchPFERD TOOLS type532VersionWRPackaging unit1 EACHQuality files for industry and trade. These files are packaged in a protective and climate-resistant PVC pouch for storage in a toolbox or on a workbench. Each file comes with an ergonomic file handle. This plastic pouch comes in attractive packaging with a transparent window.Special featuresDesigned for a wide range of applications.Includes matching plastic pouch to save storage space.Consistently high stock removal rate from the tip to the tang.Durable.Recommendations for useUse this file for universal workshop applications.Workpiece materialsAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Steel, cast steelSteels up to 370 HV (< 38 HRC)ZincApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

Technical informationPFERD File Set - Hand, Square, Half-Round, Round, Half-Round Wood Rasp 8" Coarse CutItem number11800520EDP no.16177Length8 InchPFERD TOOLS type520VersionWRPackaging unit1 EACHQuality files for industry and trade. These files are packaged in a protective and climate-resistant PVC pouch for storage in a toolbox or on a workbench. Each file comes with an ergonomic file handle. This plastic pouch comes in attractive packaging with a transparent window.Special featuresDesigned for a wide range of applications.Includes matching plastic pouch to save storage space.Consistently high stock removal rate from the tip to the tang.Durable.Workpiece materialsAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Steel, cast steelSteels up to 370 HV (< 38 HRC)WoodZincApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

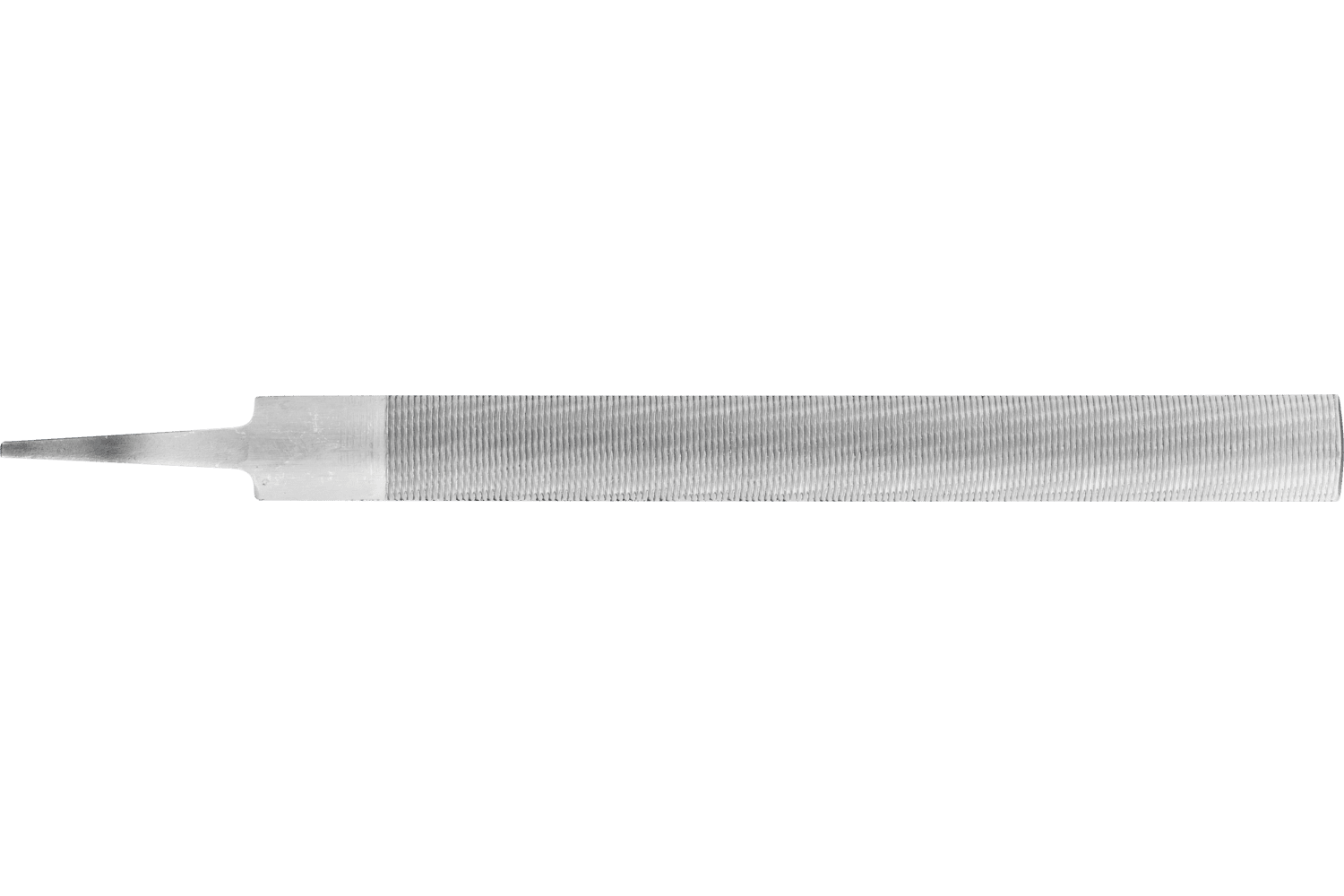

Technical informationPFERD Aluminum Half Round File 12" Cut 0Item number11106300Cut0EDP no.17108Height11/32 InchLength12 InchPFERD TOOLS type1652 wWidth1.125 InchPackaging unit5 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Half-round file, tanged with cut on two sides. Excellent filing performance due to the PFERD spiral cut on the half-round side. Designed to work well on soft metals. Special cut specifically designed for coarse stock removal on soft metals such as aluminum. Files come in industrial packaging without handles.Special featuresSpecial tooth geometry prevents the file from loading.Ideal surface finish.Labor-saving.Workpiece materialsTough aluminium alloysZincAluminumBrassBronzeCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Other non-ferrous metalsPlasticsSoft non-ferrous metalApplicationsChamferingDeburringSurface workCompatible power toolsManual application

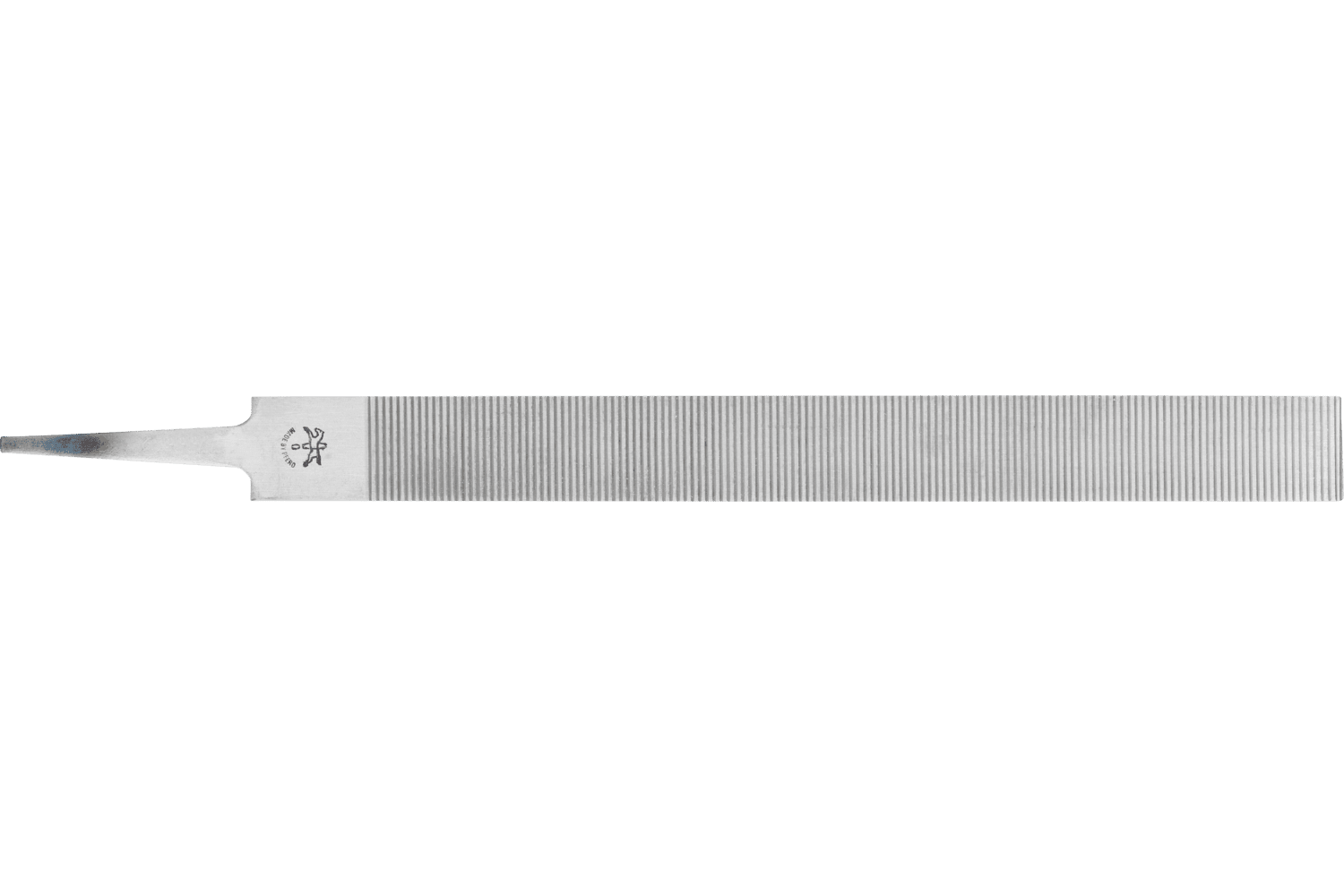

Technical informationPFERD Aluminum Flat File 12" Cut 0Item number11102300Cut0EDP no.17104Height9/32 InchLength12 InchPFERD TOOLS type1612 wWidth1.15625 InchPackaging unit5 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file, tanged and special cut on three sides, one edge uncut. Designed to work well on soft metals. Special cut specifically designed for coarse stock removal on soft metals such as aluminum. Files come in industrial packaging without handles.Special featuresSpecial tooth geometry prevents the file from loading.Ideal surface finish.Labor-saving.Workpiece materialsZincAluminumBrassBronzeCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Other non-ferrous metalsPlasticsApplicationsChamferingDeburringSurface workCompatible power toolsManual application

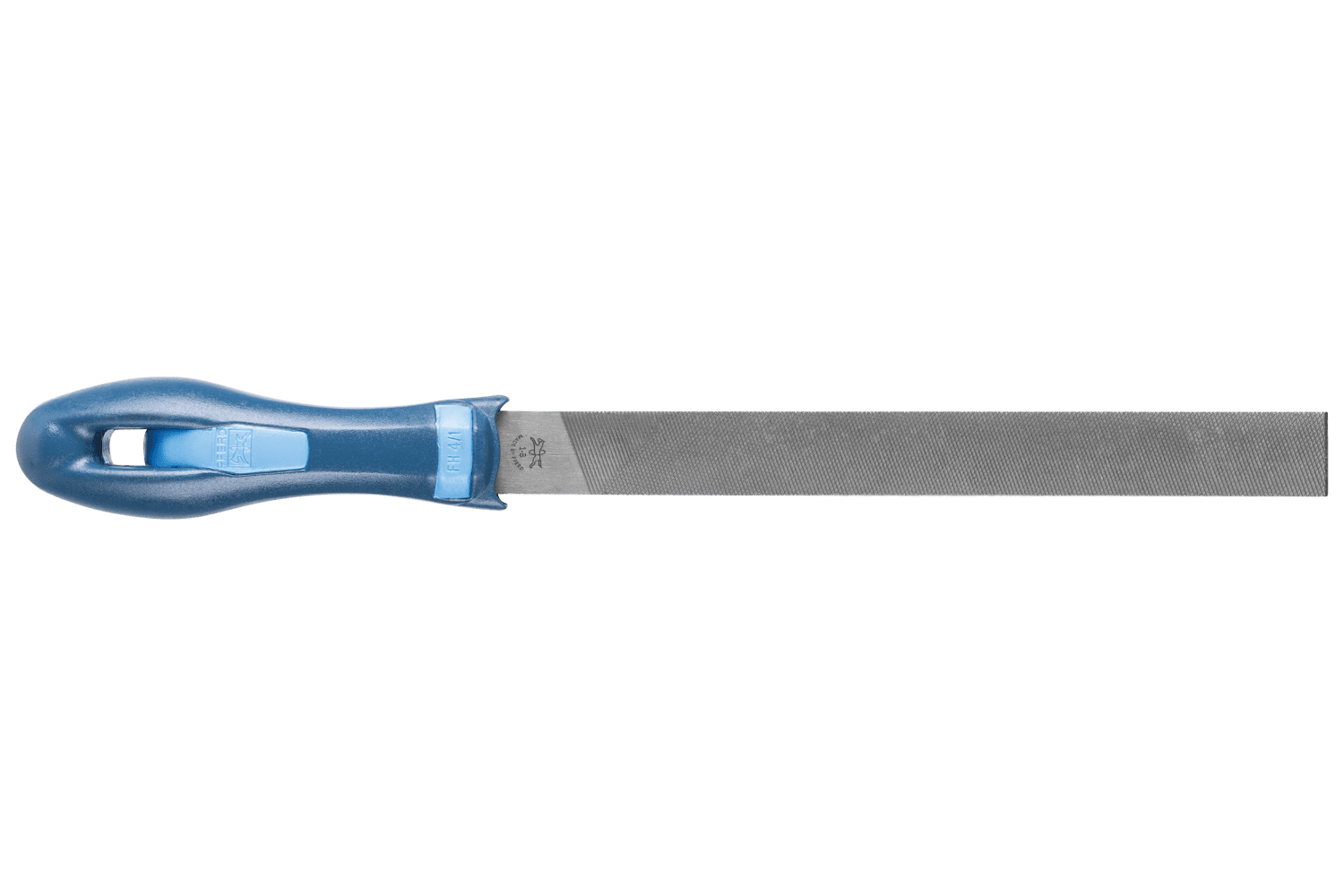

Technical informationPFERD Universal Rasp File 8" with Handle RetailItem number11232206CutCross cut 1 / rasp cut 1Cut files typeCross cut 1 / rasp cut 1EDP no.16056PHeight13/64 InchIncl. handle12617141Length8 InchPFERD TOOLS type1512Width25/32 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file with different cuts on both flat sides. Tanged version with ergonomic file handle. Cross cut 1 on front side for roughing, rasp cut 1 on back side for rasping, and one cut edge. Combination of cross cut on one side and a rasp cut on the other side for coarse roughing and machining. Files come in point-of-sale packaging with ergonomic file handles.Special featuresFor roughing and coarse stock removal using the same product.Versatile.Workpiece materialsSteelWoodAluminumBronzeApplicationsChamferingDeburringSurface workWorking on edgesCompatible power toolsManual application

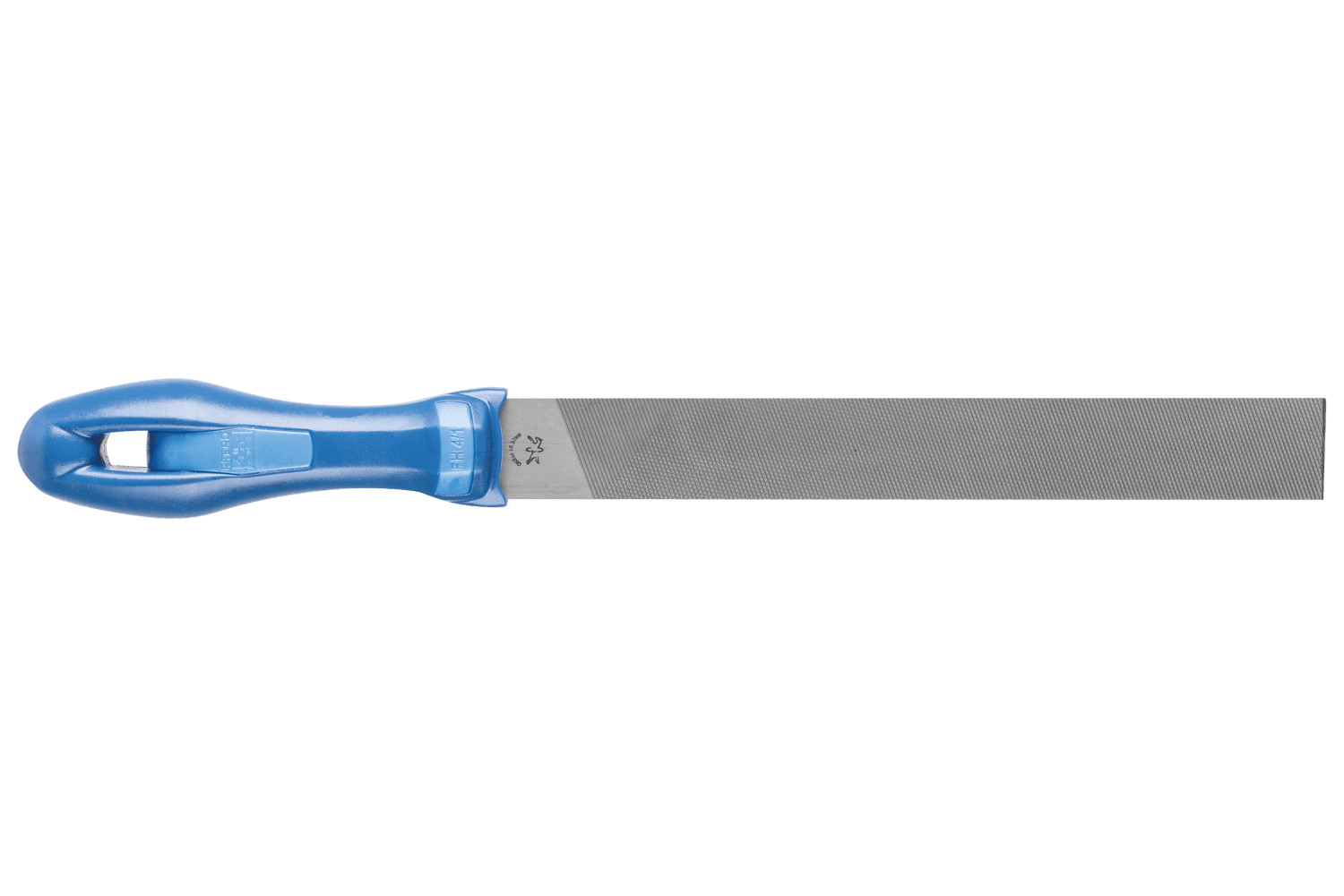

Technical informationPFERD All-Purpose File 8" Second Cut with Handle RetailItem number11273207CutCross cut 1 / single cut 2Cut files typeCross cut 1 / single cut 2EDP no.16053PHeight5/32 InchIncl. handle12617141Length8 InchPFERD TOOLS type1212Width1 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file with different cuts on three sides. Tanged version with ergonomic file handle. Cross cut 1 on front side for roughing, single cut 2 on back side, and edge for sharpening. Combination of cross cut for coarse roughing and machining on one side and a single cut on the other side for sharpening cutting tools. Files come in point-of-sale packaging with ergonomic file handles.Special featuresFor roughing and sharpening using the same product.Versatile.Workpiece materialsSteels up to 370 HV (< 38 HRC)AluminumCast steelApplicationsChamferingDeburringFinishingSharpeningSurface workWorking on edgesCompatible power toolsManual application

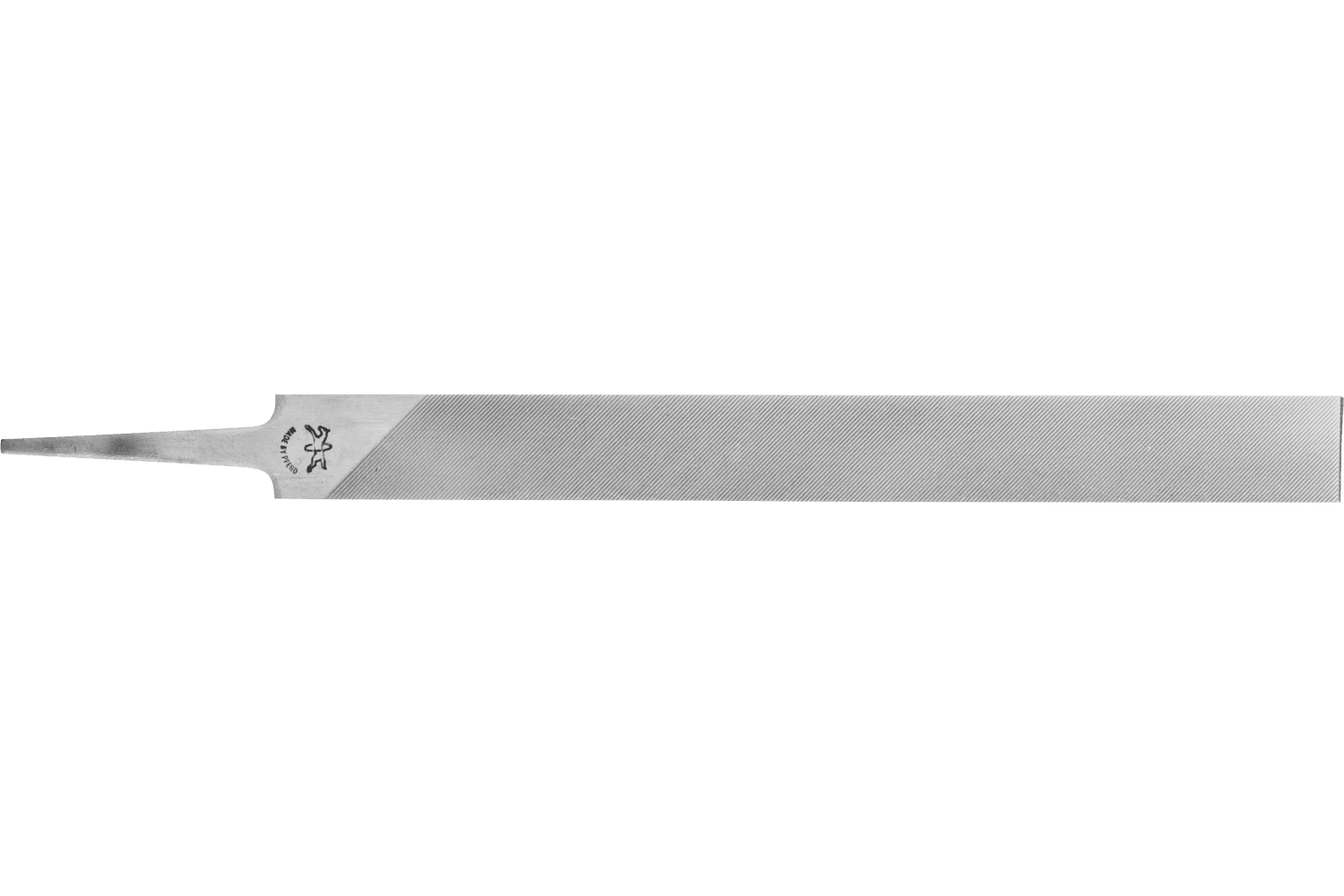

Technical informationPFERD Machinists File, Long Angle Lathe 10" Smooth Cut 2 Safe EdgesItem number12119253CutSingle cutCut files typeBastardEDP no.17005Height1/4 InchLength10 InchPFERD TOOLS type1612 DEWidth31/32 InchPackaging unit10 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file, tanged and cut on two sides, two edges uncut. Suitable for deburring parts rotated on a lathe. Special cut specifically designed for lathe filing.Special featuresOpposing directions of the cut keeps the file away from the chuck during lathe work. This improves safety.Workpiece materialsSoft woodSteelSteel, cast steelSteels up to 370 HV (< 38 HRC)Tool steelsWoodZincAluminumBrassBronzeCast ironCast steelCopperFibre-reinforced thermosetting plastics (GRP, CRP)Grey/nodular cast iron (GG/GJL, GGG/GJS)Hard aluminium alloysHard non-ferrous metalHardwoodOther non-ferrous metalsPlasticsSoft non-ferrous metalApplicationsChamferingDeburringRoundingSurface workWorking on edgesCompatible power toolsManual application

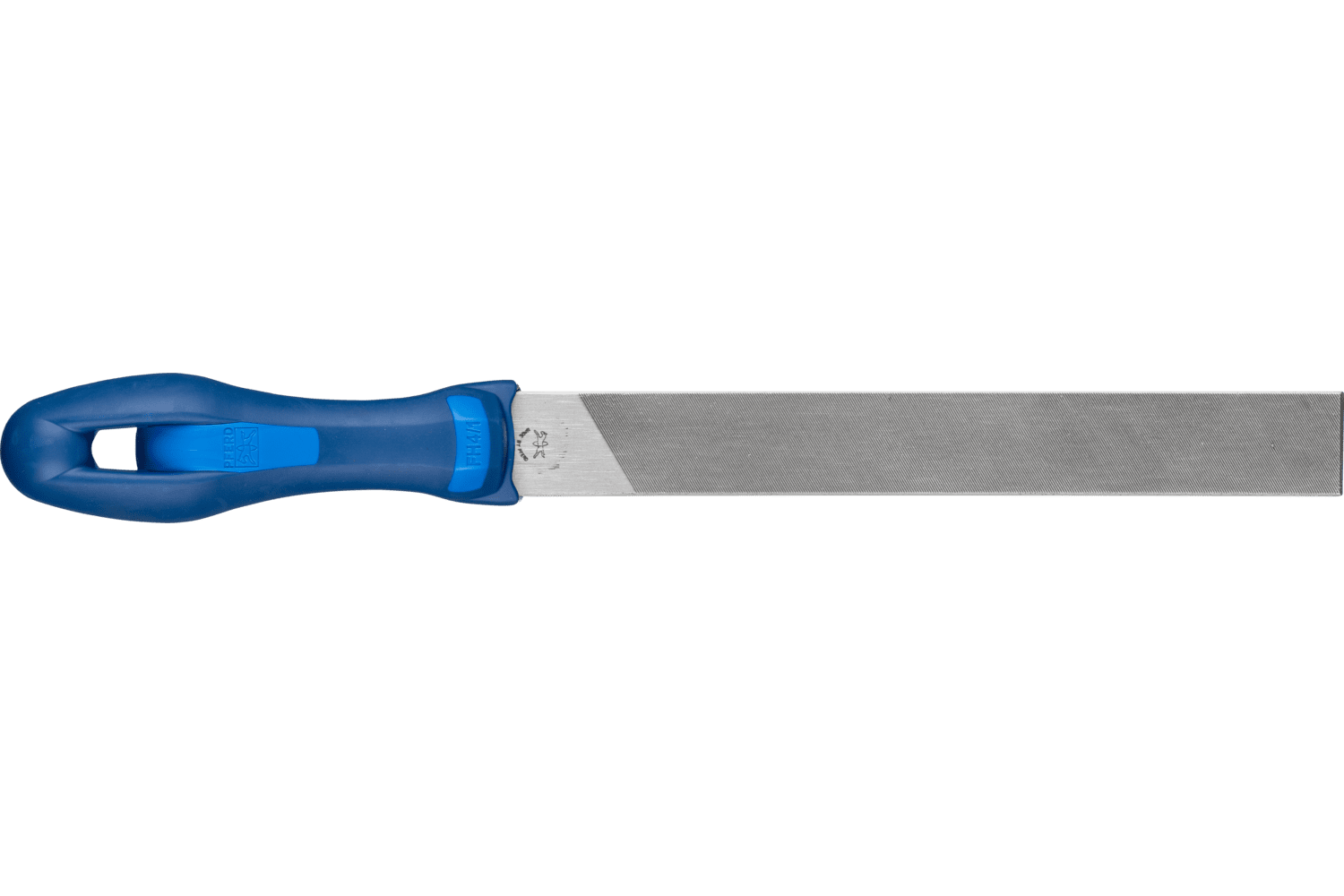

Technical informationPFERD Saw Bit File - Round Edge 8" Second Cut 2 Safe Edges with Handle (Retail Packaging)Item number11272207CutSingle cut 2Cut files typeSingle cut 2EDP no.17125PHeight1/8 InchIncl. handle12617141Length8 InchPFERD TOOLS type1212Width15/32 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file, tanged, single cut 2 on two sides, with rounded, uncut narrow edges and ergonomic file handle. Often referred to as a lawnmower file. Can also be used to sharpen cutting tools. Single cut specifically designed for sharpening cutting tools. Files come in point-of-sale packaging with ergonomic file handles.Special featuresDurable.High surface quality with optimum cutting performance.Workpiece materialsSteelCast steelApplicationsChamferingFinishingSharpeningCompatible power toolsManual application

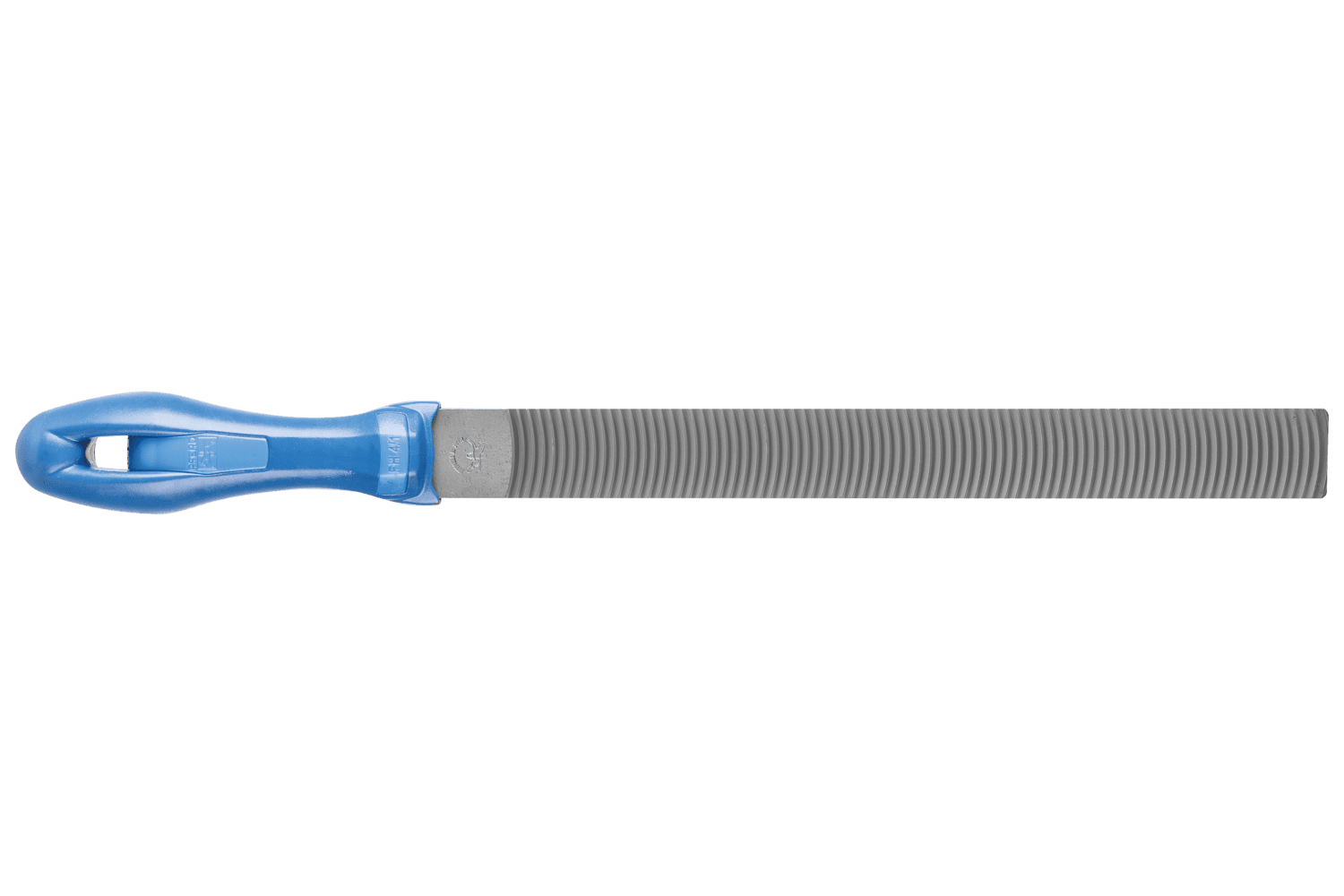

Technical informationPFERD Fitter's File 10" Radial Cut 1 and Straight Cut 2 with HandleItem number11273256CutRadial 1/straight 2EDP no.16058Height1/8 InchIncl. handle12617141Length10 InchPFERD TOOLS type611Width15/32 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file with different milled cuts, tanged and with ergonomic file handle. Straight cut with chip breaker on front side, radial cut on back side, uncut edges. Combination of a radial cut on one side for coarse stock removal, roughing and achieving score-free surfaces, and a straight cut on the other side for general roughing and finishing tasks. Files come in point-of-sale packaging with ergonomic file handles.Special featuresExtremely robust design.Versatile.Workpiece materialsSteels up to 370 HV (< 38 HRC)WoodAluminumCast steelOther non-ferrous metalsPlasticsApplicationsChamferingDeburringSurface workCompatible power toolsManual application
